From the manufacturer

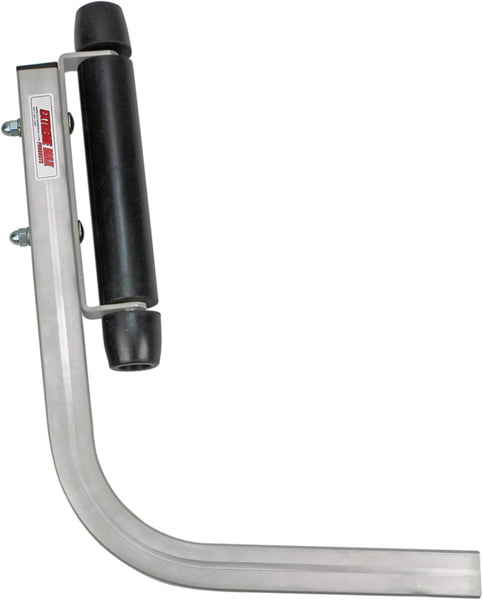

Extreme Max Heavy-Duty Roller Guide-On System
3005.3822
The Extreme Max Heavy-Duty Roller Guide-On System provides a worthy assist while getting your boat on and off its trailer, helping you load and unload faster and safer. Attached to the trailer frame, the pair of guide-ons helps center the boat on the trailer, preventing wind and currents from derailing your loading attempts, while the uprights provide a sight line at deep launches and in murky waters. The rubber rollers provide a soft touch for your boat, while its steel construction withstands nearly anything you can throw at it.
- Use with bunk and roller style trailers with frames up to 3" wide x 4.25" tall
- Heavy-duty zinc-coated steel construction
- Designed for freshwater use only
- Mounting hardware included
Roller Guide-On System

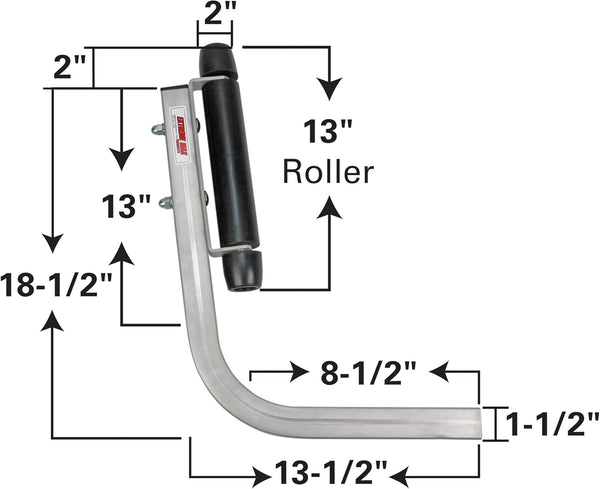

The Extreme Max Heavy-Duty Roller Guide-On System provides 13" rollers that keep your boat lined up with your trailer. The rubber construction of the rollers helps prevent scratches and other damage to your boat's hull by providing a soft, forgiving surface when bumped against. The system is adjustable both width-wise and height-wise to offer a fit that best suits your boat.

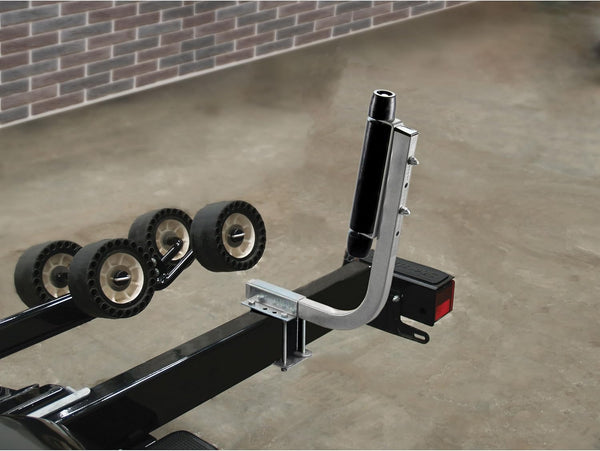

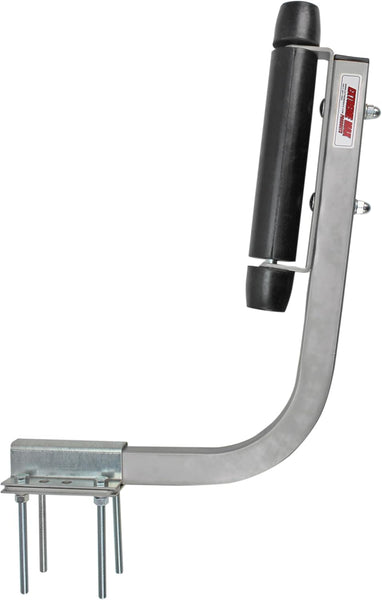

Direct-to-Frame Mounting

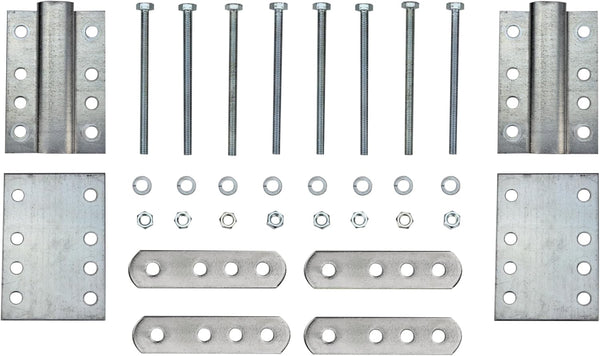

The guide-ons attach directly to the frame of roller and bunk style trailers with no drilling or cutting required, making them easy to move or reposition if needed. The standard hardware kit is included, allowing mounting on trailer frames up to 3" wide x 4.25" tall. Additional hardware kits are available for larger-framed trailers if required.
See hardware kit 3005.4065 for trailer frames up to 5" tall.
Also Available from Extreme Max:
Extreme Max 3005.2181 Roller Guide-On System
Looking for something smaller? The standard roller guide-on system from Extreme Max includes one pair of rollers guide-ons perfectly sized for small aluminum boats, duck boats, jon boats, and other light craft while offering many of the same benefits of the Heavy-Duty Roller Guide-On System.
Adjustable Roller Guide-On System
|
Side Mount Roller Guide-On
|
Bunk Trailer Guide-On
|
Single Post Horizontal Bunk Guide-On
|
Carpeted Vertical Bunk Guide-On
|
Post Trailer Guide-On
|
|
|---|---|---|---|---|---|---|
|
|
||||||
| Customer Reviews |
406
|
44
|
408
|
277
|
78
|
335
|
| Price | $437.33 | — no data | $168.53 | $335.10 | $226.35 | $649.82 |
| Extreme Max Part Number | 3005.2184 | 3005.3825 | 3005.2196 (2') / 3005.2199 (4') | 3005.3837 | 3005.3828 | 3005.2175 (45") / 3005.2778 (65") |
| Upright Angle (From Trailer) | 70° to 90° | 102° | 100° | 96° | 100° | 90° |
| Height Adjustment | 28" to 40" | Up to 24" | 10.5" to 16" | 19" to 25" | 16" (Static) | 45" or 65" (Static) |
| Contact Point | 13" Roller Assembly | 13" Roller Assembly | 24" or 48" Carpeted Bunk | 18" Carpeted Bunk | 16" Carpeted Bunk | 45" or 65" PVC Guide |
| Construction | Steel with Rubber Rollers | Steel with Rubber Rollers | Steel with Carpeted Bunks | Steel with Carpeted Bunks | Steel with Carpeted Bunks | Steel with PVC Guides |
| Bolt-On Installation | ||||||
| Rustproof Hardware | ||||||
| Compatible Waters | Freshwater use only | Freshwater use only | Freshwater use only | Freshwater use only | Freshwater use only | Freshwater use only |
