Product description
HHIP heavy duty arbor press. 4 position steel anvil. Precision made. Steel pinions. Base measures 9-inches length by 4-inches width.5 ton capacity. 6.5-inches maximum diameter. 10-inches press height. 4.5-inches capacity over table.
From the manufacturer
About HHIP
Since 1982, our first priority as an importer and superstore has been to provide superior value and service to the manufacturing and metalworking industries.
8600-0031 - Heavy Duty Arbor Press
HHIP 1/2 ton capacity heavy duty arbor press is a hand operated press. It is used to perform smaller jobs, such as staking, riveting, installing, configuring and removing bearings and other press fit work. Punches, bits, or other tools/dies may be added to the end of the ram on our Pro-Series shown below. We offer presses with a leverage of 1/2–5 tons. This leverage is achieved when a force is applied to the lever arm or wheel. Arbor presses can be mounted on a work bench, wall, or pedestal.
- 1/2 Ton Heavy Duty Arbor Press
- 4 position steel anvil
- Maximum diameter is 6.5"
- Press height is 10"
- Base size is 4 X 9"
- Capacity over table is 4.5"
- The ram is driven by a rack and pinion to improve the mechanical advantage.
|
|
|
|
|
|---|---|---|---|---|
| 1/2 Ton | 1 Ton | 2 Ton | 5 Ton | |
|
|
||||
| Customer Reviews |
668
|
668
|
668
|
668
|
| Price | $119.99 | $143.94 | $539.44 | — |
| Capacity Over Table | 4-1/2" | 5-1/4" | 8-1/2" | 18" |
| Capacity Over Anvil | 5" | 6" | 9.5" | 19" |
| Ram | 3/4" | 1" | 1-1/4" | 2" |
| Press Height | 10" | 13" | 18" | 35" |
| Base Size | 4 x 9" | 5 x 11" | 6 x 16" | 11 x 27" |
| Maximum Work Diameter | 6.5" | 8" | 12" | 18" |
| Weight | 24 lbs. | 35 lbs. | 91 lbs. | 360 lbs. |
|
|
|
|
|
|
|---|---|---|---|---|---|
| PRO-SERIES 1/2 TON | PRO-SERIES 1 TON | PRO-SERIES 2 TON | PRO-SERIES 3 TON | 3 TON RATCHET TYPE | |
|
|
|
||||
| Customer Reviews |
105
|
105
|
105
|
105
|
— |
| Price | $152.37 | $249.78 | — | $668.91 | — |
| Capacity Over Anvil | 4.6" | 5.5" | 8.52" | 12.5" | 16.5" |
| Ram | 3/4" | 1" | 1-1/4" | 1-1/2" | 1-1/4" |
| Press Height | 10" | 11" | 15" | 21.5" | 28" |
| Base Size | 5 x 9.5" | 6 x 10.5" | 8" x 16" | 9 x 18" | 10 x 22" |
| Maximum Work Diameter | 6.6" | 8" | 12" | 12" | 13" |
| Weight | 20 | 33 | 71 | 105 | 230 |
| Ram Bore, 3 Bit Set | 3/8" | 3/8" | 1/2" | 1/2" | Ratcheting |
|
|
|
|
|
|---|---|---|---|---|

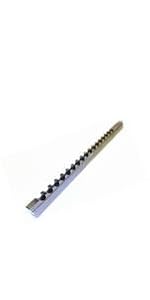

| HHIP 8600-3301 2 Ton Ratchet Type Arbor Press | HHIP 2006-1102 Steel Slot-Collard Keyway Bushing, 1/4" | HHIP 2006-0051 9 Piece Keyway Broach Set | HHIP 2006-1008 1/8 Inch A HSS Keyway Broach | |
| Customer Reviews |
41
|
71
|
2
|
144
|
| Price | $448.84 | $33.83 | $326.86 | $73.52 |
| Style | Ratcheting Arbor Press | Keyway Bushing | Broach Set | Keyway Broach |
