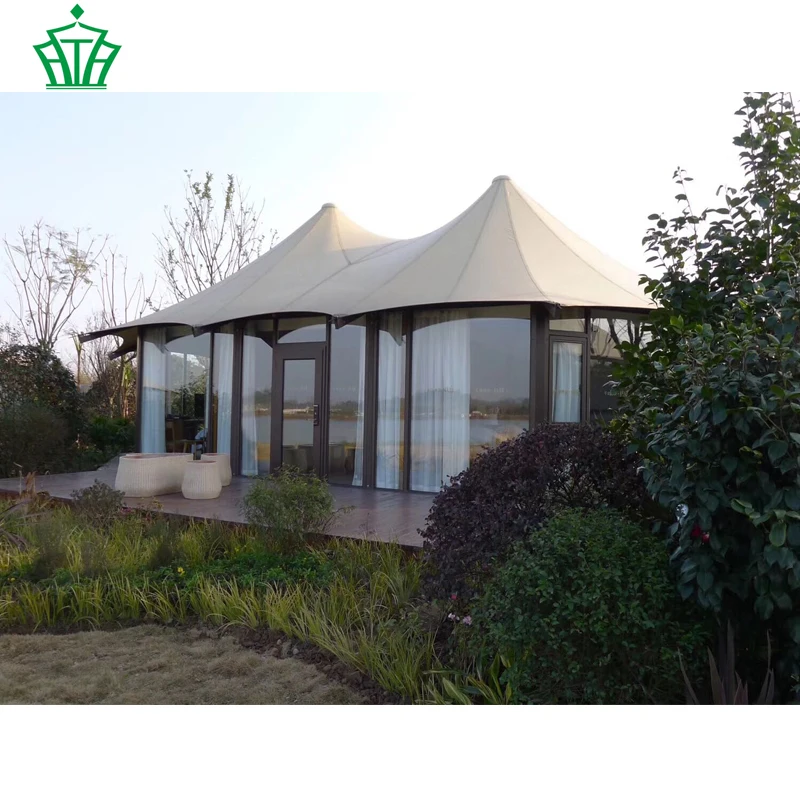

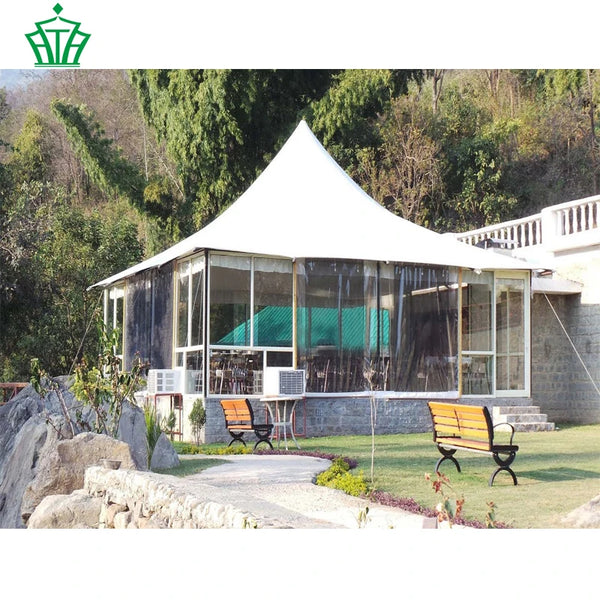

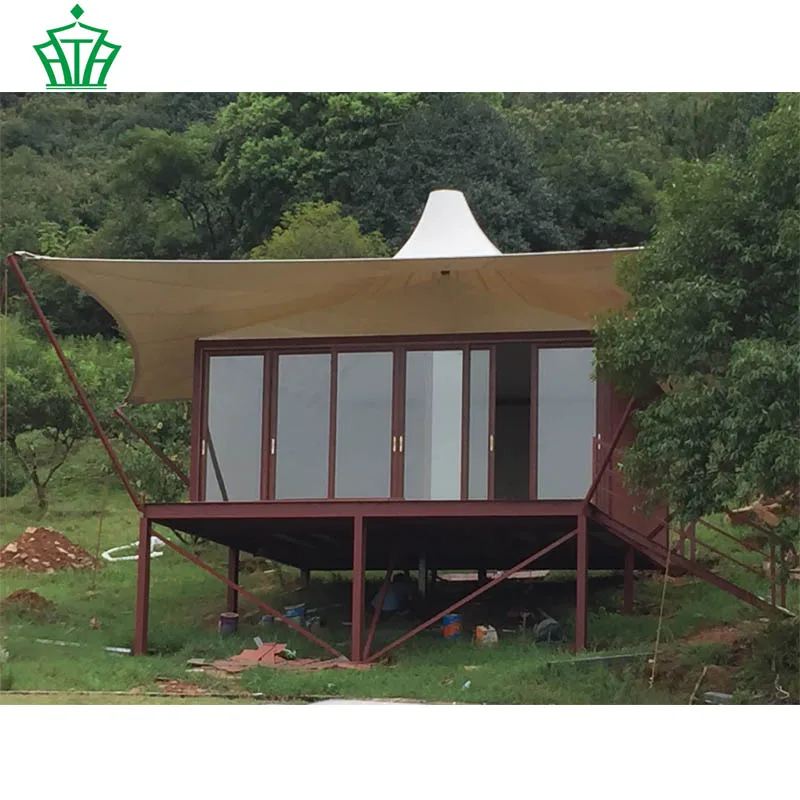

Membrane structure which called tension membrane structure ,is a new kind of building structure.It through the steel frame,steel column or wire make the membrane material produce a certain tension in order to form a certain space shape,composition can bear a certain tension stability catenary system.Membrane structure of the membrane material should be made concave and convex space curved surface to ensure its stability,so the membrane structure is called space membrane structure as well.
Technical profile |
|
|
Technical |
Technical Date |
Executive Standard |
Base Fabric |
High Strength Low Yarn polyester Yarn |
DIN EN 60001 |
Yarn count(yarn/cn) |
1100dtex |
DIN ISO 2060 |
Weave Style |
12/12/yarn/cm |
DIN EN 1049-2 |
Weight of Base Fabric (G/SQM) |
Dyeing Cloth |
|
Total Weight (G/SQM) |
1000G/SQM |
|
Total thickness(mm) |
0.8mm |
|
Tensile Stregth(N/5cm) |
4400/4200N/5cm |
DIN EN 1421 |
Tear Strength(N) |
600/550N |
DIN 53363 |
Adhesion(N/5cm) |
>120N/5cm |
IVK 3.13 |
Threshold Temperature |
(-30)℃---(+70)℃ |
DIN EN1876-1 |
Light Transmission |
5% |
|
Acoustical Weakening Index |
15dBA |
|
Surface Treatment |
Double layer PVC ,clean by itsself |
|
Flame Retardancy |
DIN 4102B1 GB8624 B1 |
|
Quality Management |
DINEN ISO9001 |
|
Features:
1,High strength and intensity but light weight
2,Waterproof, UV resistance, heat insulation,anti-aging, Transmittance ect.
3,Moisture proof, smoke proof, soundproof self-cleaning, beautiful view
4,Modern design, Easy to install
5, used in seasonal or permanent structures for indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools, cafeterias and food courts, exhibition and conventional
centers, canopies and vehicle parkings, etc
We can make the 3D and CAD drawing for clients free of charge according to clients project.
